AI Application Architecture: The Complete Guide to Building Scalable AI Systems

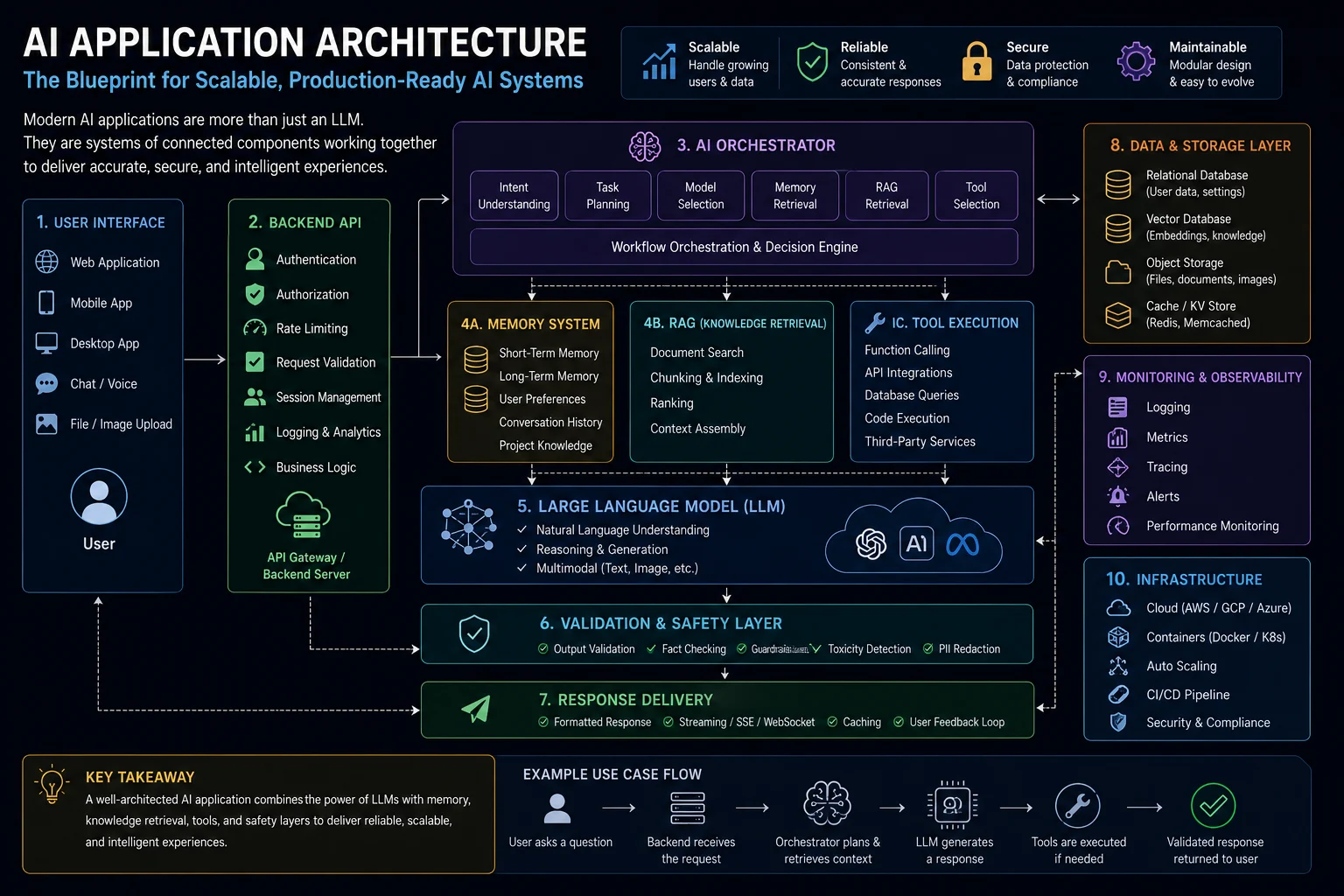

Introduction Artificial Intelligence applications have evolved far beyond simple chatbots. Today's AI systems can write software, search enterprise knowledge bases, analyze images, automate workflows, interact with APIs, and complete complex business tasks with minimal human intervention. Behind these intelligent experiences lies a sophisticated architecture. Modern AI applications are not built around a single Large Language Model; instead, they consist of multiple interconnected components that work together to deliver reliable, scalable, and secure solutions. A production-ready AI application typically includes user interfaces, backend services, orchestration layers, language models, memory systems, Retrieval-Augmented Generation, vector databases, tool execution frameworks, monitoring, and cloud infrastructure. Each component has a specific responsibility, ensuring that the system remains maintainable and performs efficiently under real-world workloads. This guide explores the architecture of modern AI applications, explains the purpose of each layer, and outlines best practices for building AI systems that are accurate, scalable, and ready for production. What Is AI Application Architecture? AI application architecture is the blueprint that defines how all components of an AI-powered application interact. Rather than relying solely on an LLM, the architecture coordinates user interfaces, backend APIs, authentication, business logic, AI orchestration, memory, knowledge retrieval, tool execution, databases, monitoring, security, and cloud infrastructure. The result is a system capable of delivering intelligent responses while integrating seamlessly with existing software. High-Level Architecture A simplified request flows through the stack like this: User → Web, Mobile, or Desktop App → API Gateway and Backend → Authentication and Business Logic → AI Orchestrator. From the orchestrator, work fans out across three parallel paths: Memory → Database, RAG → Vector Database, and Tool Calling → External APIs. The assembled context then reaches the Large Language Model → Validation Layer → Final Response. Every request passes through multiple stages before a response is returned. Layer 1 — User Interface The frontend is where users interact with the AI system. Examples include web applications, mobile apps, desktop software, Slack bots, Microsoft Teams integrations, voice assistants, and internal enterprise dashboards. A well-designed interface supports chat, file uploads, image inputs, and streaming responses for a smooth user experience. Layer 2 — Backend API The backend serves as the central coordinator. Its responsibilities include authentication, session management, rate limiting, user permissions, request validation, logging, business logic, and communication with AI services. The backend should never expose API keys or allow direct access to language models from the client. Layer 3 — AI Orchestrator The orchestrator is the brain of the application. Instead of sending every request directly to an LLM, it decides which model to use, whether memory should be retrieved, if RAG is required, which tools need to be called, whether additional reasoning steps are necessary, and how results should be validated. This layer enables flexibility, allowing developers to swap models or workflows without changing the rest of the application. Layer 4 — Large Language Model The LLM provides language understanding and reasoning: understanding prompts, generating responses, writing code, summarizing documents, explaining concepts, and planning tasks. However, the LLM should not operate in isolation. It works best when combined with retrieval, memory, and tool execution. Layer 5 — Memory System Memory enables continuity across conversations. A production AI system may maintain user preferences, project information, previous conversations, frequently used prompts, and long-term objectives. Memory improves personalization and reduces repetitive interactions. Layer 6 — Retrieval-Augmented Generation Language models cannot know every private or recent piece of information. RAG addresses this limitation by retrieving relevant documents from trusted sources before generation. Typical knowledge sources include internal documentation, product manuals, research papers, company policies, support articles, and databases. By grounding responses in retrieved information, RAG significantly improves accuracy and reduces hallucinations. Layer 7 — Vector Database Retrieved knowledge is often stored in a vector database. Instead of searching for exact keywords, vector search identifies information based on semantic similarity. Popular use cases include enterprise search, document retrieval, knowledge management, AI memory, and recommendation systems. Vector databases allow AI applications to find relevant information even when users phrase queries differently. Layer 8 — Tool Calling One of the defining features of modern AI applications is the
